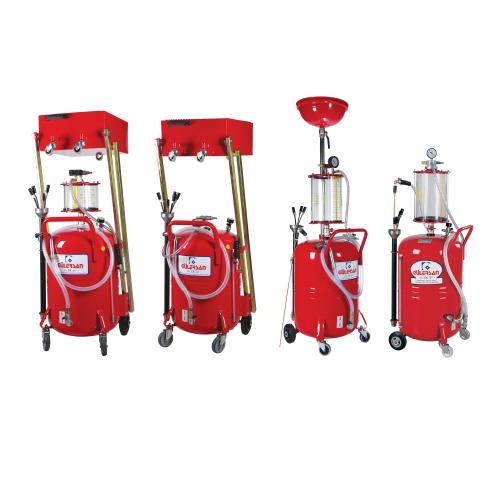

Oil Suction Machines

The oil suction machines are able to collect the dirty oil into the glass chamber with the help of air. The amount of oil used can be monitored from the glass scala, 9 lt glass section and 80 lt storage capacity available, oil, sealing is ensured by the double sided seal, Around the glass section Metal bars provide protection against impact, Oil suction can be done without the need of continuous air connection, two fixed, two swivel castors with high mobility, Five different oil suction hose are supplied with the product, The filling rate can be monitored from the level indicator bar on the tank, Tank discharge can be done with air, The safety valve on the tank provides protection against extreme air pressures, Appropriate oil temperature is 70 – 80 ° C. The vehicle can be lifted and used. It should not be used in corrosive and flammable liquids.

Model

6000

6500

 Working Temperature

60-80°C

60-80°C

Working Pressure

6-8 Bar

6-8 Bar

 Discharge Pressure

0,5 Bar

0,5 Bar

 Capacity

80+9 Lt

80+9 Lt

 Hose

1,5 Mt 10x16 Mm

1,5 Mt 10x1Mm

 Box Dimensions

48x54x123Cm

48x54x123Cm

Weight

28.80 Kg

32.40 Kg

Catalog

The oil suction machines are able to collect the dirty oil into the tank or glass chamber with the help of air. The amount of oil used can be monitored from the level scala, 80 lt storage capacity is available. Oil suction can be done without the need of continuous air connection, two fixed, two swivel castors with high mobility. Tank discharge can be done with air.The safety valve on the tank provides protection against extreme air pressures, Appropriate oil temperature is 70 – 80 ° C, Telescopic oil suction machines can suck oil without lifting the vehicle from the ground. Thanks to the telescopic arms driven under the car, oil is drained into the pan from there it is absorbed into the tank with the help of air. there is a perforated filter for oil splashing inside the pan, Five different oil suction hose are supplied with the product, impregnation can be done by attaching special oil suction rods, It should not be used in corrosive and flammable liquids.

Model

6640.20

6640.40

6650.20

6650.40

Working Temperature

60-80°C

60-80°C

60-80°C

60-80°C

 Working Pressure

6-8 Bar

6-8 Bar

6-8 Bar

6-8 Bar

 Discharge Pressure

0,5 Bar

0,5 Bar

0,5 Bar

0,5 Bar

 Capacity

80+20 Lt

80+40 Lt

80+7+20 Lt

80+7+40 Lt

Hose

2 Mt 10x16 Mm

2 Mt 10x16 Mm

2 Mt 10x16 Mm

2 Mt 10x16 Mm

 Box Dimensions

57x67x127 Cm

57x67x138 Cm

57x67x127 Cm

57x67x138 Cm

 Weight

41.50 Kg

44.30 Kg

45.40 Kg

47.80 Kg
