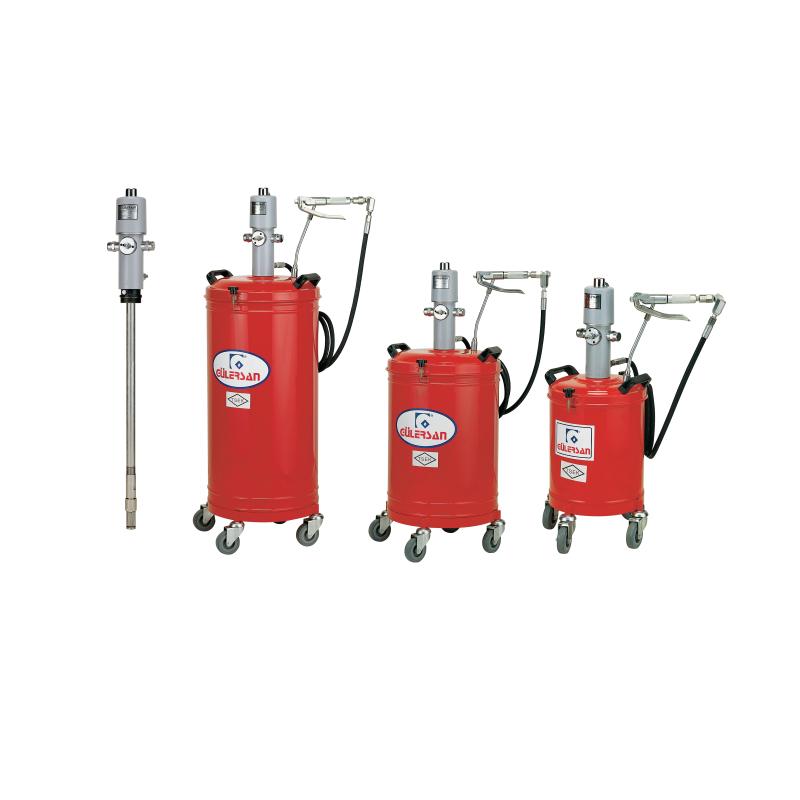

The air operated pumps with a 45: 1 pressure ratio has a 10, 30, 50 Kggrease capacity , ideal for short distance high pressure lubrication,Four wheels make it easy to move, hydraulic hose is used Pistondiameter Ø62 mm, follower plate and spring pressing grease , thegrease in the reservoir is compressed and the pump feed is easy inhigh viscosity grease and cold areas also The hose and gun can beused more easily thanks to the Z joint at the entrance of the greasegun minimum working pressure 6 bar maximum working pressure8 bar, It is recommended that you use filtered and lubricated air tooptimize the performance and life of air-operated pumps,Functionalized with optional accessories.
|
Model |
2210 |
2230 |
2250 |
|
Working Pressure |
6 - 8 Bar |
6 - 8 Bar |
6 - 8 Bar |
|
Pressure Ratio |
70 : 1 |
70 : 1 |
70 : 1 |
|
Output |
1100 Gr/ Min |
1100 Gr/ Min |
1100 Gr/ Min |
|
Capacity |
10 Kg |
30 Kg |
50 Kg |
|
Hose |
2Mt R2-1/4” |
2Mt R2-1/4” |
2Mt R2-1/4” |
|
Box Dimensions |
36x42x79Cm |
39x42x92Cm |
39x40x113Cm |
|
Weight |
13,00 Kg |
16,70 Kg |
19,20 Kg |
The air operated pumps with a 45: 1 - 70:1 pressure ratio has a 185 Kg grease capacity , ideal for short and long distance high pressurelubrication, Piston diameter Ø62, Ø75 mm, follower plate and weight use is recommended , the grease in the reservoir is compressed and the pump feed is easy in high viscosity grease and cold areas also minimum working pressure 6 bar maximum working pressure 8 bar, It is recommended that you use filtered and lubricated air to opti- mize the performance and life of air-operated pumps, Functionalized with optional accessories.
|
Model |
2450 |
2400 |
|
Working Pressure |
6 - 8 Bar |
6 - 8 Bar |
|
Pressure Ratio |
45 : 1 |
70 : 1 |
|
Output |
1400 Gr/Min |
1100 Gr/ Min |
|
Capacity |
185 Kg |
185 Kg |
|
Out |
1/8” Npt |
1/8” Npt |
|
Box Dimensions |
14x16x126Cm |
14x16x126Cm |
|
Weight |
7,00 Kg |
7,30 Kg |
