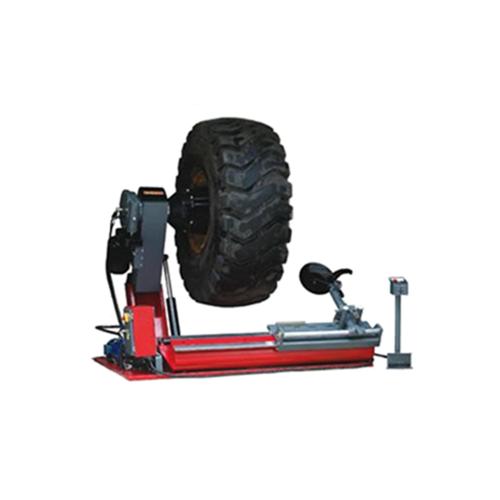

Zirve 56 is semiautomatic tyre changer suitable formounting and demounting truck, agriculturel, industrial and construction equipment wheels up to a maximum widh of 960 mm. It is electro-hydraulic operated and the controls are all located together on a low voltage portable unit. The hydraulic turntable, with two rotation speeds in both directions, has top-range design features and uses choice materials. It asures excellent clamping during the delicate clamping, bead and tyre demounting functions.
Technical Details:
| Max. Wheel Width | 960 mm |
| Max. Wheel Diameter | 2480 mm |
| Max. Wheel Weight | 2500 kg |
| Weight | 870 kg |
| Chucking Device | 7-14 rpm |
| Bead Breaker Power | 2000-2500 kg |
| Voltage | 380 V – 3 Phase |
| Handles Rim From-To | 14’’-56’’ |
| Pump Motor | 1,5 kW |
| Gearbox Motor | 2,2 kW |
| Working Pressure | 0-200 bar (Standart 180 bar) |
| Control Panel | 24 V |
| Sound Level | 70 dBA |
| Colour | RAL 3000 Kırmızı, RAL 7011 Gri |
